Titanium

Ti-6AI-4V grade 23

Contact an AP&C powder specialist

For more  than 10 years, experienced users of Additive Manufacturing, MIM, HIP, and Coating technologies have trusted AP&C’s Ti-6Al-4V powders to build high-quality components for the Aerospace, Biomedical, and Industrial markets. Their high-quality components begin with high-quality powders.

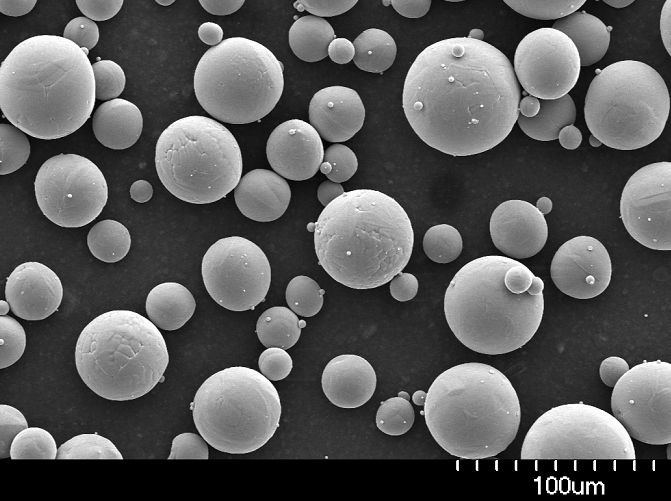

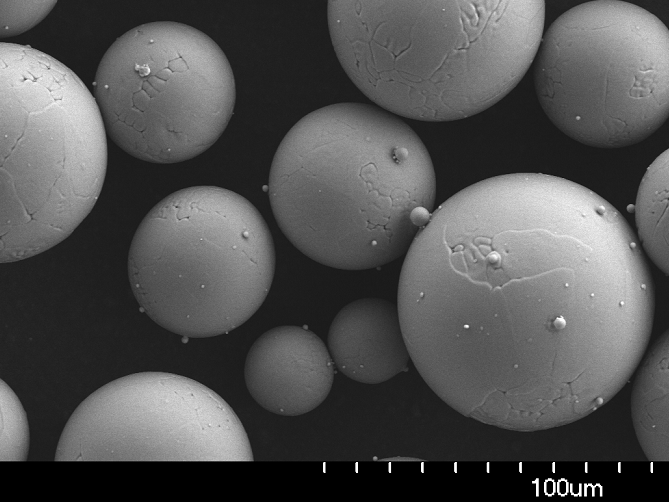

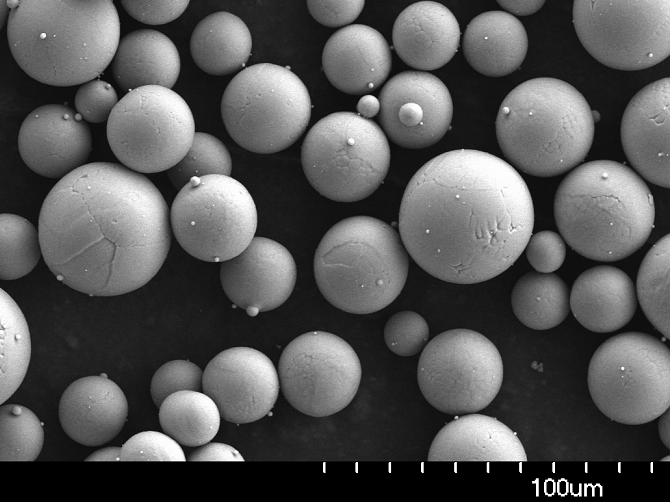

AP&C’s  Ti-6Al-4V  powders are manufactured using the proprietary APATM Plasma  Atomization process, producing  powders with the  ideal  characteristics for many applications, including Additive Manufacturing. These highly spherical  powders contain virtually no entrapped porosities. Additionally, they possess minimal satellite content, resulting in truly exceptional flowability and packing density.



Titanium alloy: Ti-6Al-4V grade 23

Powder chemistry may comply with standards: ASTM B348, ASTM F136, ASTM F1580, ASTM F2924, ASTM F3001, AMS 4998
Typical particle size distributions (PSD): 15-45 μm, 15-63 μm, 45-106 μm, 45-150 μm, 106-180 μm


SD Size distribution by laser diffraction (ASTM B822) Apparent density (ASTM B212) Flow rate (ASTM B213) Oxygen content
   D10  D50  D90
15-45 µm 20 µm 34 µm 44 µm 2.49 g/cm3 28 s 0.11 %
15-53 µm 23 µm 38 µm 52 µm 2.51 g/cm3 26 s 0.11 %
15-63 µm 24 µm 44 µm 61 µm 2.50 g/cm3 25 s 0.10 %
45-106 µm 52 µm 71 µm 102 µm 2.47 g/cm3 25 s 0.08 %
45-150 µm 54 µm 81 µm 123 µm 2.59 g/cm3 25 s 0.08 %

*Tap density per ASTM B527

Particle size distribution

Prev Next

Ti-6AI-4V Grade 23

Particle size distribution is measured by laser diffraction as per ASTM B822.  Due to the high sphericity and very low satellites present on AP&C powder, the particle size distribution is highly uniform and the D10, D50 and D90 meet and exceed the industry requirements with an exceptional batch to batch reliability. The typical powder atomization yield ranges from 0-150 µm, after atomization, the powder is sieved according customer specifications.

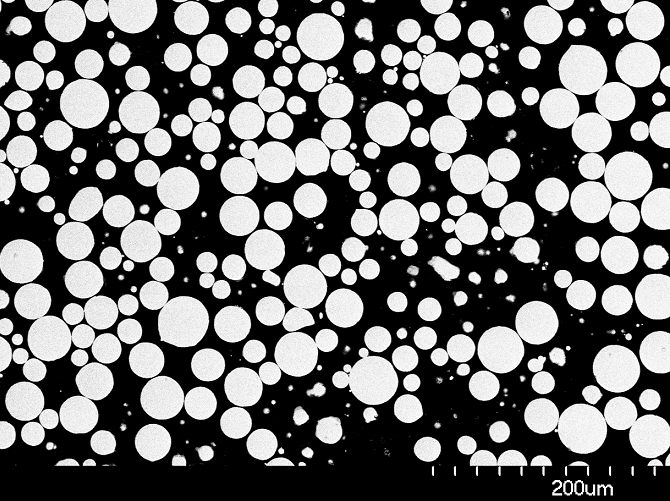

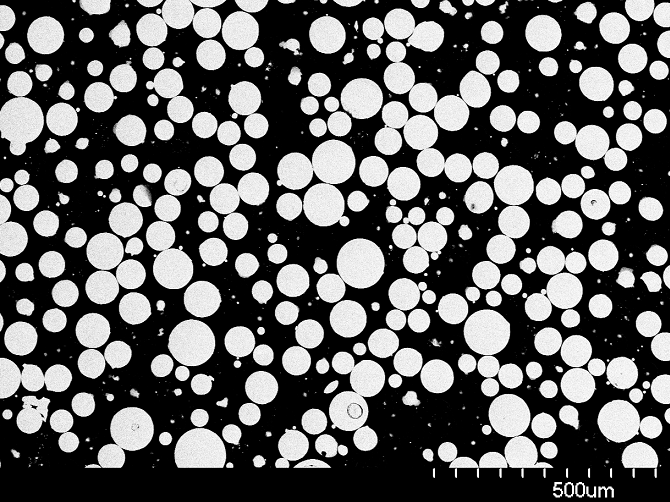

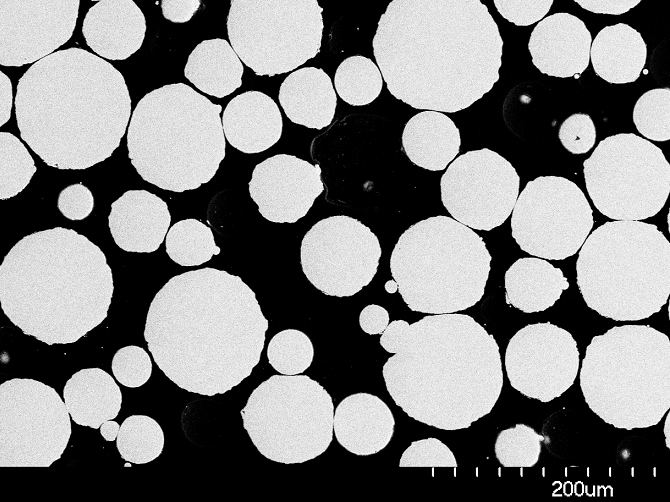

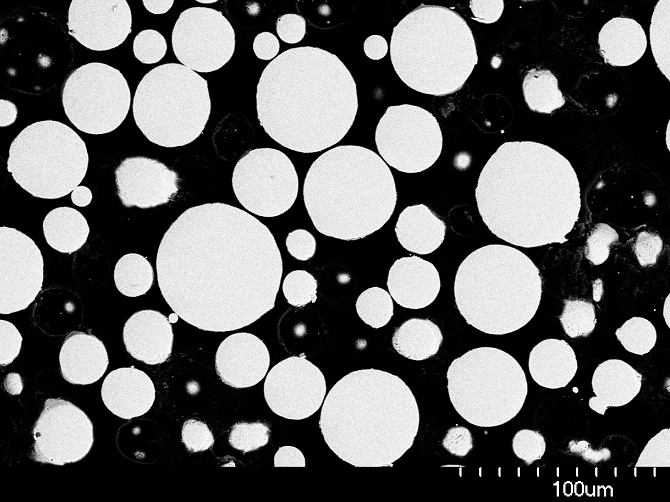

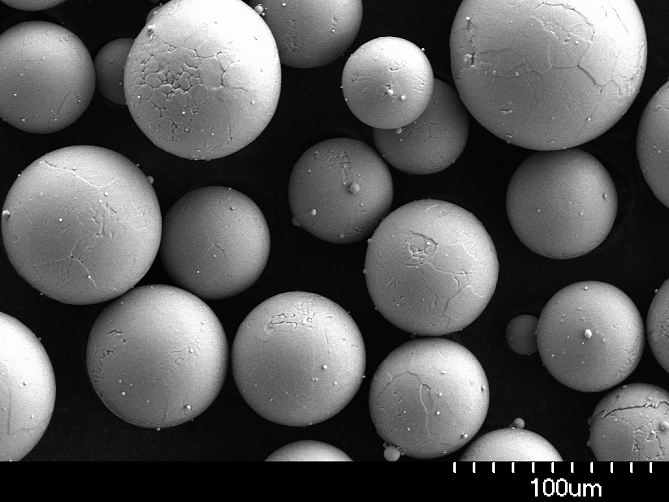

Metallographic images

Prev Next
